LONGHUA Die Cutting Machines

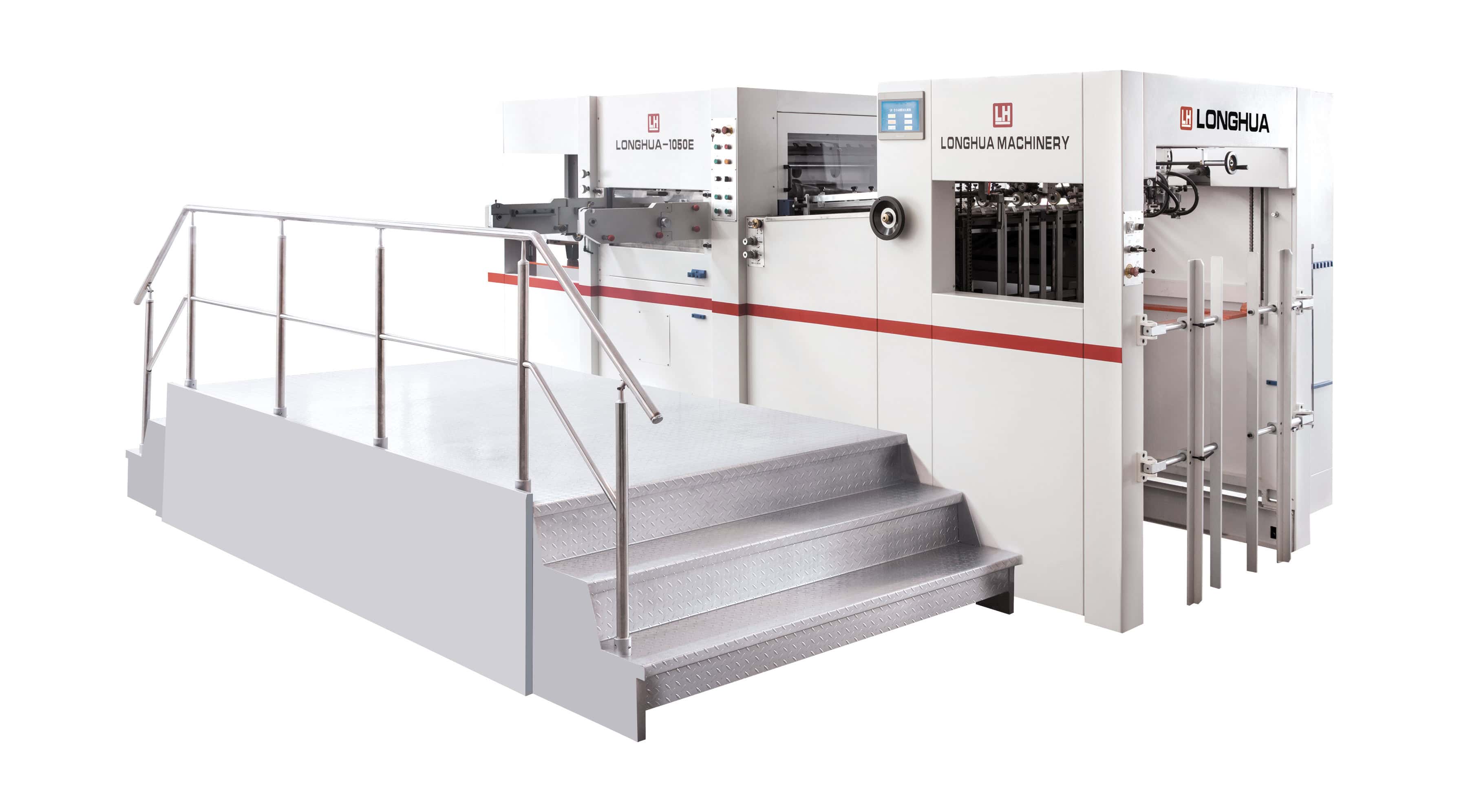

LH-1050E Automatic die cutting machine
LH-1050E Automatic die cutting machine is the basis and star model of Longhua.
This machine integrates the high quality accessories and our skilled processing and debugging technology, basic on current mature die cutting tech.
On the machine speed up to 7500 sheets/hr, it still achieve grasp, convey, die cutting and delivery flexibly, stably and accurately.

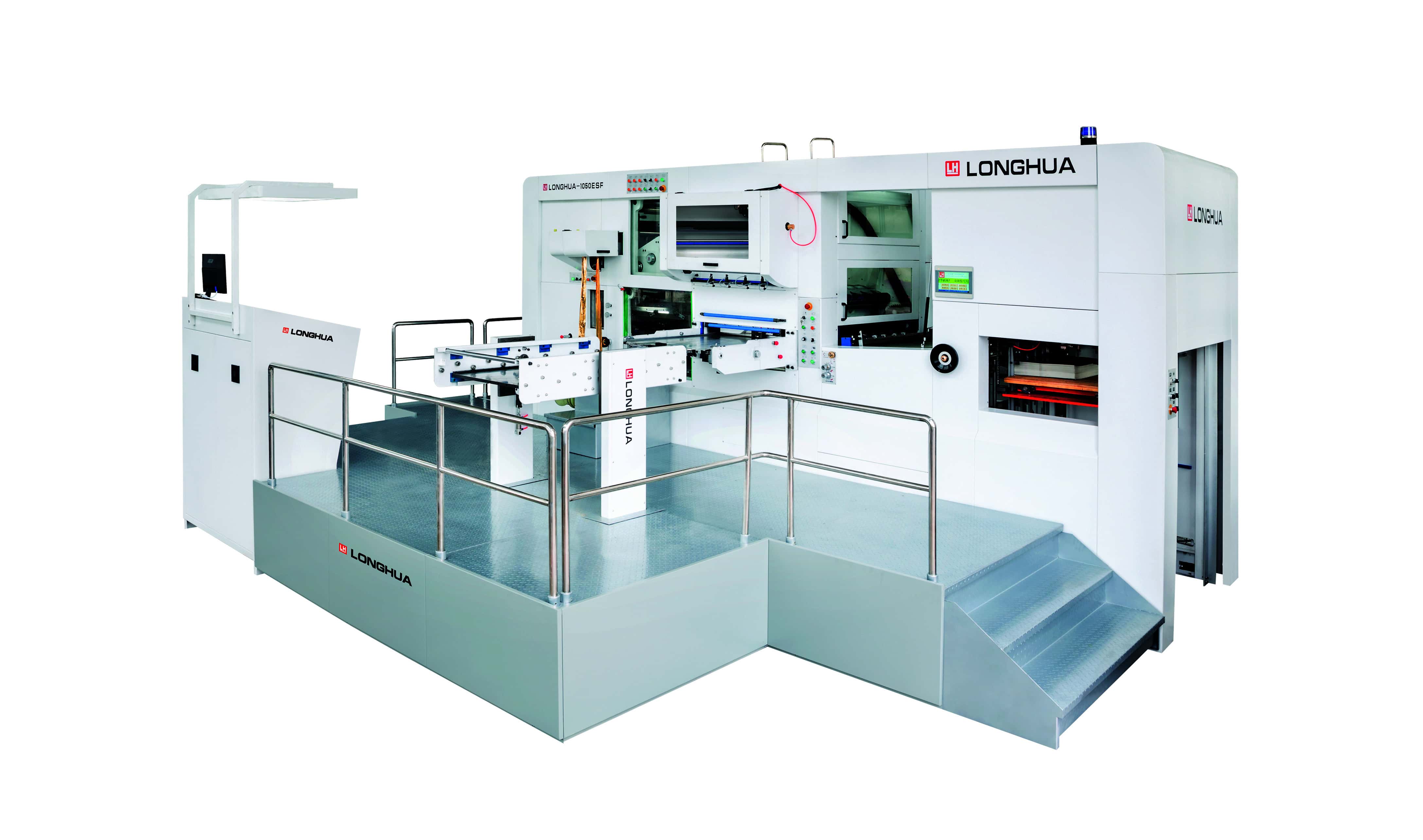

LH-1050EF Automatic heated platen stripping die cutting machine
LH-1050ES, adds stripping and heating function on the basis of LONGHUA automatic die cutting machine.
It realizes one time paper feeding, die cutting , stripping, delivery.
And it achieves full-stripping, semi-stripping and remove all kinds of special-shaped waste quickly and effectively.
According to the paper and die cutting condition.
12 independent temperature zones, constant temperature stability, which solve the white and burr phenomenon effectively.

Max Paper Size : 1050x750mm ; 41.33x29.5"
Cardboard: 60 to 2000 g/m2 ; 205 to 6800 Lb.in2
Corrugated Board up to 4mm ; 0.157" ; (5/32")
Plastic : 0.1 to 2mm ; 0.004 to 0.078"
Max Cutting Pressure: 300 Tons ; 660,000 Lb
Max Speed: 7500 Sheets/hr

12 Heating Zones

LH-1050ES Automatic stripping die cutting machine
LH-1050ES, adds stripping function on the basis of LONGHUA automatic die cutting machine. It realizes one time paper feeding, die cutting , stripping, delivery. And it achieves full-stripping, semi-stripping and remove all kinds of special-shaped waste quickly and effectively. According to the paper and die cutting condition.

Max Paper Size : 1050x750mm ; 41.33x29.5"
Cardboard: 60 to 2000 g/m2 ; 205 to 6800 Lb.in2
Corrugated Board up to 4mm ; 0.157" ; (5/32")
Plastic : 0.1 to 2mm ; 0.004 to 0.078"
Max Cutting Pressure: 300 Tons ; 660,000 Lb
Max Speed: 7500 Sheets/hr

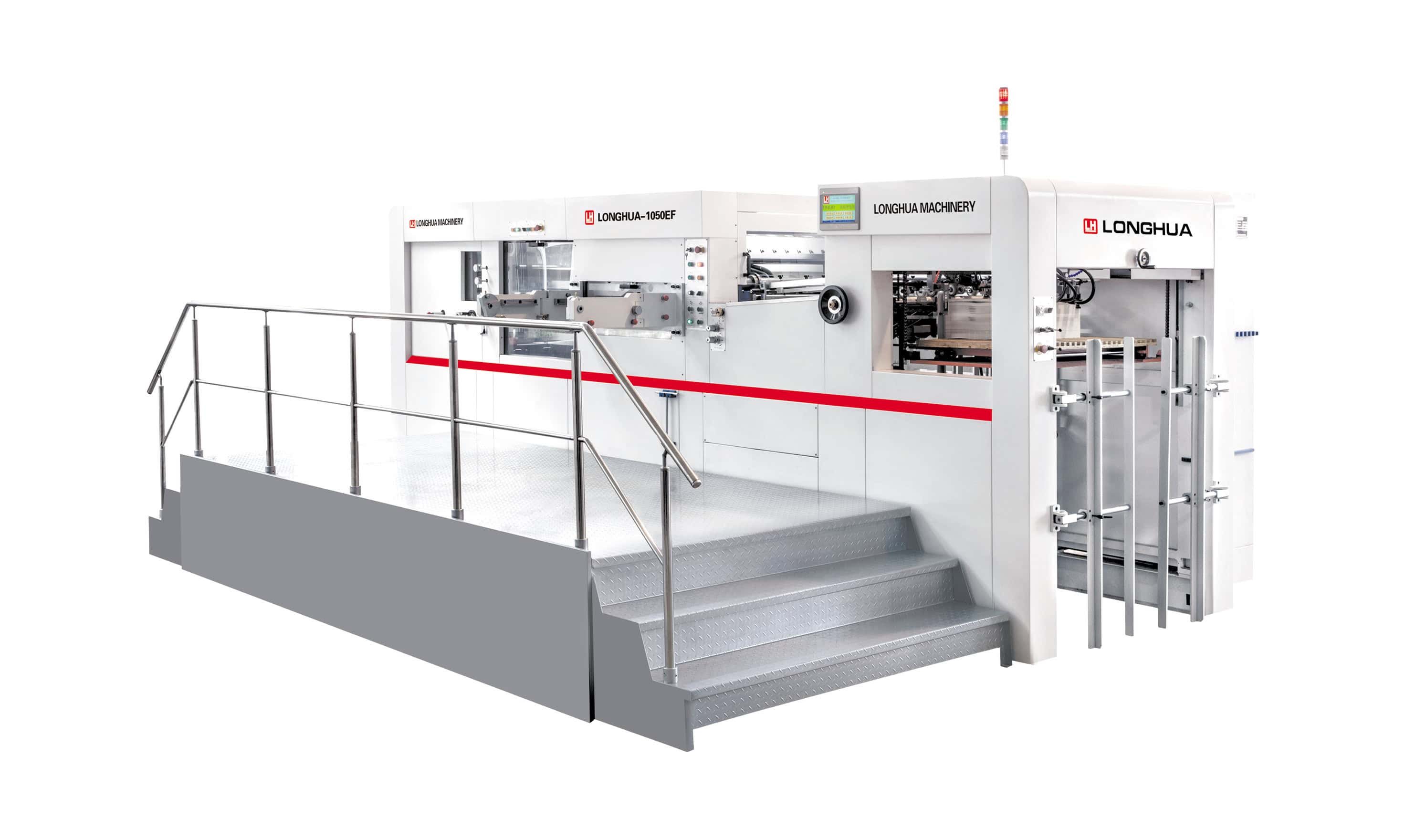

LH-1050F Automatic Heated Platen Die Cutting Machine
LH-1050F, adds heating function on the basis of ordinary die cutting machine, easily die cutting PVC, PET, GAG, PP and other semi-rigid plastic. Itís equipped with feeder removing static electricity device, which solves the piece non-smooth delivery phenomenon caused by adhesion. 12 independent temperature zones, constant temperature stability, which solve the white and burr phenomenon effectively.

Max Paper Size : 1050x750mm ; 41.33x29.5"
Cardboard: 60 to 2000 g/m2 ; 205 to 6800 Lb.in2
Corrugated Board up to 4mm ; 0.157" ; (5/32")
Plastic : 0.1 to 2mm ; 0.004 to 0.078"
Max Cutting Pressure: 300 Tons ; 660,000 Lb
Max Speed: 7500 Sheets/hr

12 Heating Zones
LH-1060E Automatic Die Cutting Machine
LH-1060E Automatic die cutting machine is the basis and star model of LONGHUA . This machine integrates the high quality accessories and our skilled processing and debugging technology, basic on current mature die cutting technology. On the machine speed up to 7500 sheets/hr, it still achieve grasp, convey, die cutting and delivery flexibly, stably and accurately.

Max Paper Size : 1060x760mm ; 41.73x29.92"
Cardboard: 0.1 to 2.5mm ; 0.004 to 0.098"
Corrugated Board up to 4mm ; 0.157" ; (5/32")
Max Cutting Pressure: 300 Tons ; 660,000 Lb
Max Speed: 7500 Sheets/hr

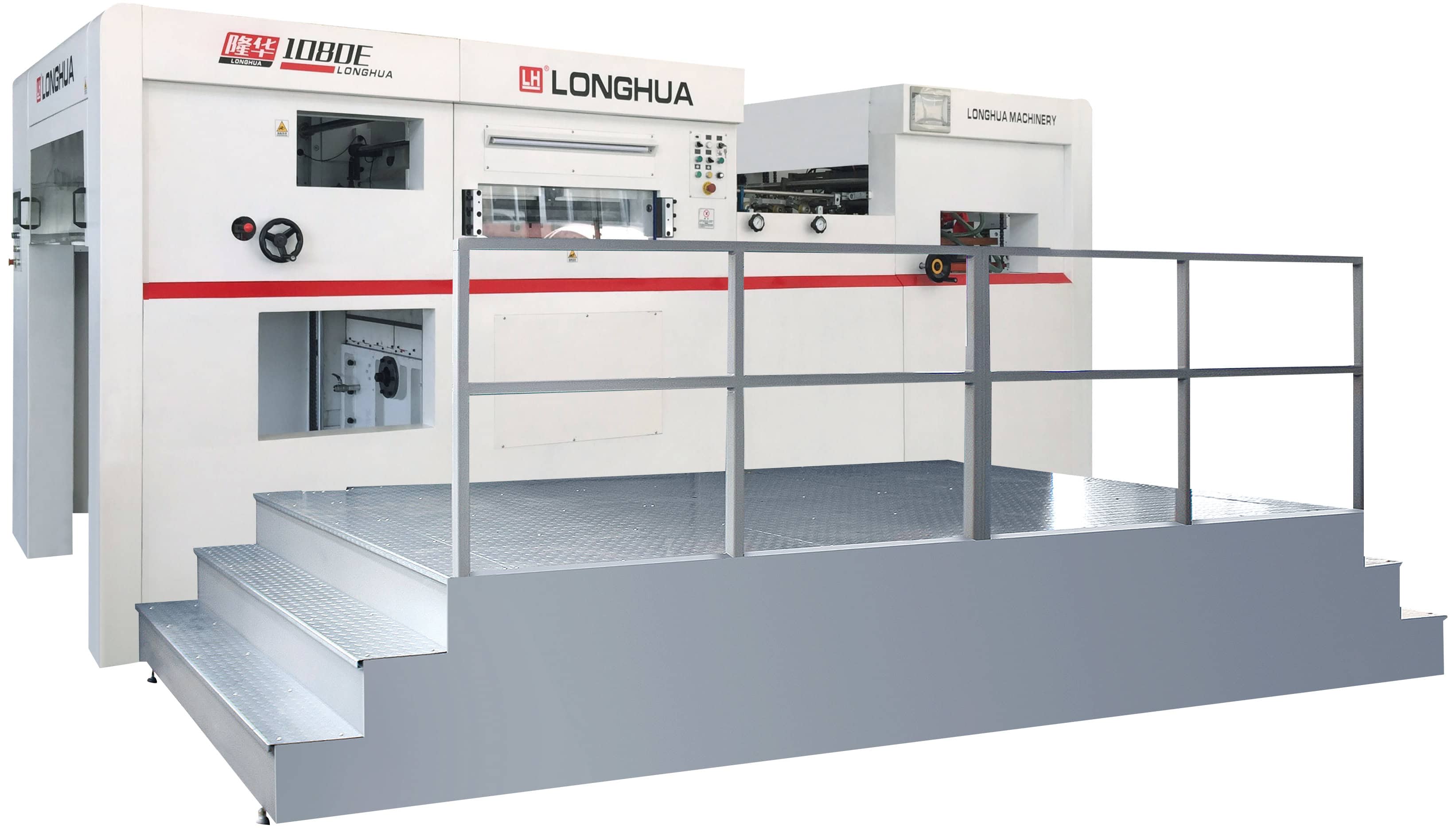

LH-1080E Automatic Die Cutting Machine
LH-1080E is designed for big size die cutting work. This machine integrates the high quality accessories and our skilled processing and debugging technology, basic on current mature die cutting tech. On the machine speed up to 7500 sheets/hr, it still achieve grasp, convey, die cutting and delivery flexibly, stably and accurately, combine power, big size work and flexibility.

Max Paper Size : 1050x750mm ; 42.5x30.7"
Cardboard: 0.1 to 2.5mm ; 0.004 to 0.098"
Corrugated Board up to 4mm ; 0.157" ; (5/32")
Max Cutting Pressure: 300 Tons ; 660,000 Lb
Max Speed: 8000 Sheets/hr

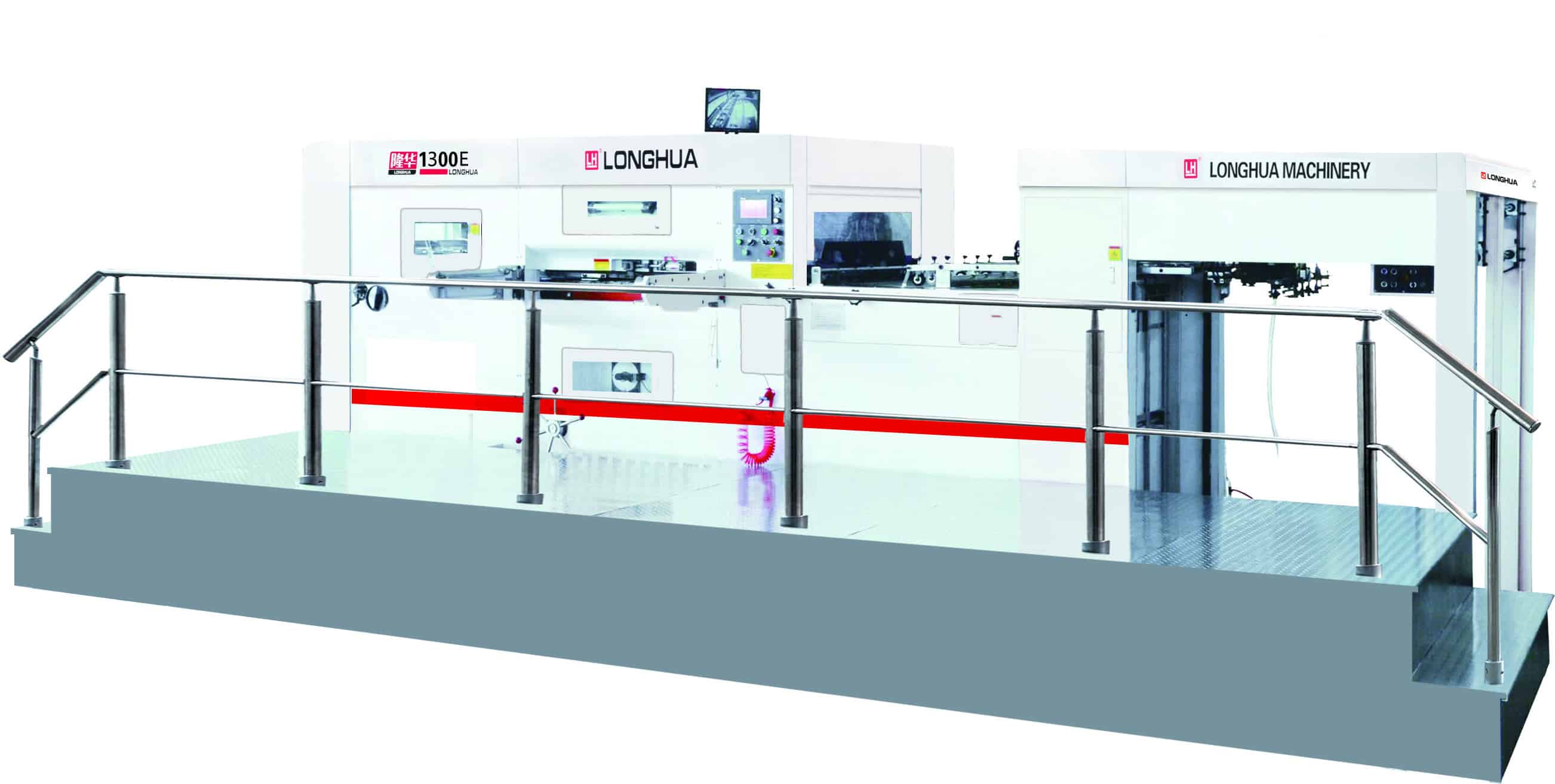

LH-1300E Automatic Die Cutting Machine
LH-1300E is designed for big size die cutting work. This machine integrates the high quality accessories and our skilled processing and debugging technology, basic on current mature die cutting tech. On the machine speed up to 5000 sheets/hr, it still achieve grasp, convey, die cutting and delivery flexibly, stably and accurately, combine power, big size work and flexibility.

Max Paper Size : 1320x960mm ; 51.9x37.8"
Cardboard: 120 to 2000 g/m2 ; 410 to 6800 Lb.in2
Corrugated Board up to 8mm ; 0.315" ; (5/16")
Max Cutting Pressure: 300 Tons ; 660,000 Lb
Max Speed: 5000 Sheets/hr
