LONGHUA Foil Stamping / Die Cutting Machine

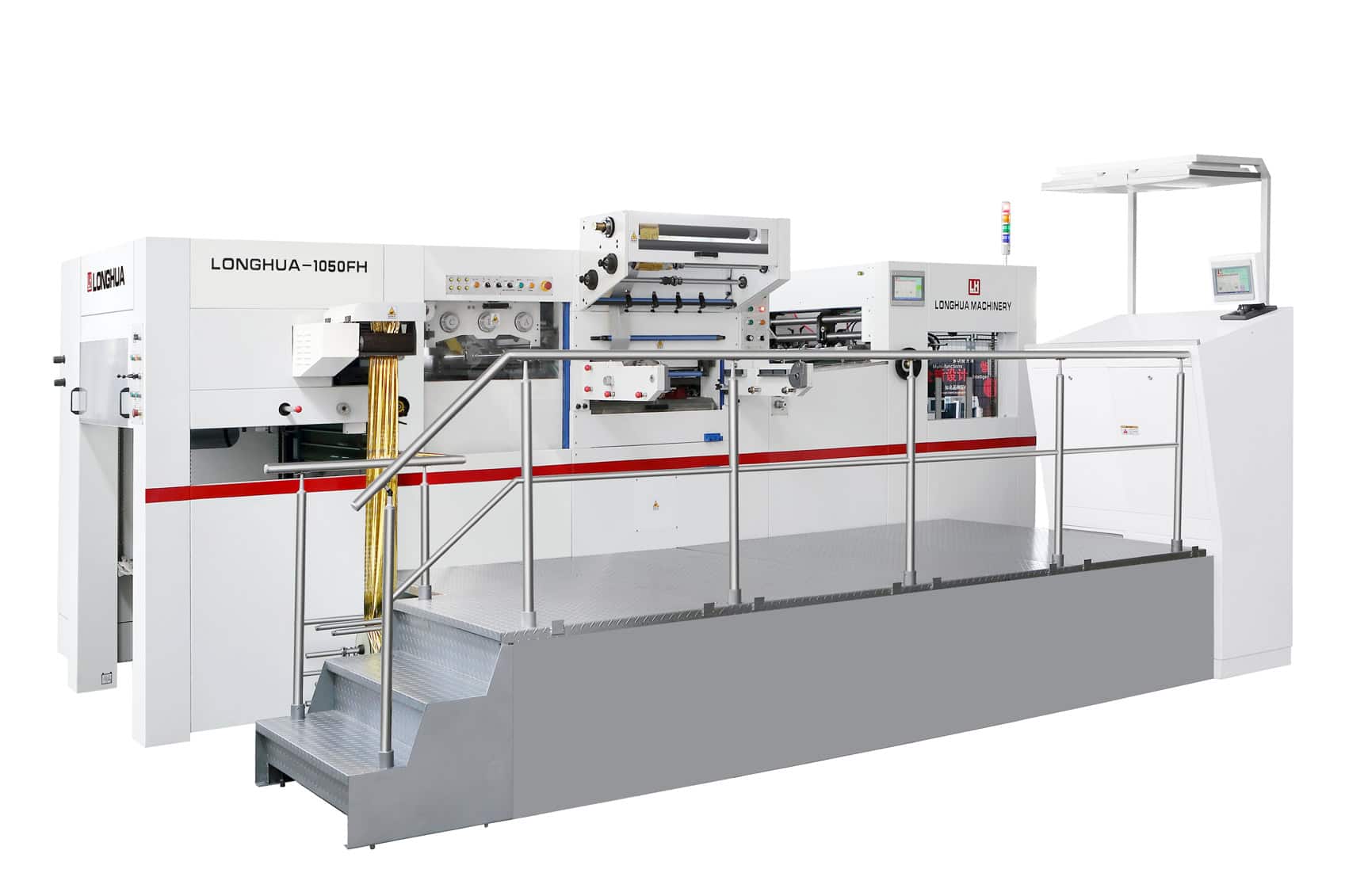

LH-1050FH Automatic Foil Stamping Die Cutting Machine
LH-1050FH, is equipped with 3V+2H independent foil feeding system, which not only ensure the stable and accurate delivery of aluminum foil at high speed, but also control the foil feeding error within 1mm, greatly save the foil. Japan YASKAWA servo system, coupled with Japan SUNX cursor detection system, improve the hot stamping precision greatly. 12 independent temperature zones control the heating system accurately, and keep the heating process stable.

Max Paper Size : 1050x750mm ; 41.33x29.5"
Cardboard: 60 to 2000 g/m2 ; 205 to 6800 Lb.in2
Corrugated Board up to 4mm ; 0.157" ; (5/32")
Plastic : 0.1 to 2mm ; 0.004 to 0.078"
Max Cutting Pressure: 300 Tons ; 66,000 Lb
Max Speed: 7500 Sheets/hr
Max Foil Stamping Speed 4500 Sheets/hr

12 Heating Zones
LH-1050DFH Automatic Embossing Foil Stamping Die Cutting Machine
LH-1050DFH, is the star product of LONGHUA, and is also one of the favorites of many leaders in China’s packaging industry. It is the prefect combination of embossing and foil stamping. Under 580 tons high pressure, the foil stamping process has achieved a qualitative leap, no matter in the scope, flatness and delicacy. The machine is equipped with 3V+2H independent foil feeding system, which not only ensure the stable and accurate delivery of aluminum foil at high speed, but also control the foil feeding error within 1mm, greatly save the foil.

Max Paper Size : 1050x750mm ; 41.33x29.5"
Cardboard: 60 to 2000 g/m2 ; 205 to 6800 Lb.in2
Corrugated Board up to 4mm ; 0.157" ; (5/32")
Plastic : 0.1 to 2mm ; 0.004 to 0.078"
Max Cutting Pressure: 580 Tons ; 1,250,000 Lb
Max Speed: 7500 Sheets/hr
Max Foil Stamping Speed 4500 Sheets/hr

12 Heating Zones

LH-1050FFS Automatic Dual-unit Holographic Positioning Foil Stamping Stripping Die Cutting Machine
LH-1050FFS, double units, which can finish foil stamping die cutting and stripping processes in one pass. It is equipped with 3V+2H independent foil feeding system, which not only ensure the stable and accurate delivery of aluminum foil at high speed, but also control the foil feeding error within 1mm, greatly save the foil. Japan YASKAWA servo system, coupled with Japan SUNX cursor detection system, improve the hot stamping precision greatly. 12 independent heating zones control the heating system accurately, and keep the heating process stable.

Max Paper Size : 1050x750mm ; 41.33x29.5"
Cardboard: 60 to 2000 g/m2 ; 205 to 6800 Lb.in2
Corrugated Board up to 4mm ; 0.157" ; (5/32")
Plastic : 0.1 to 2mm ; 0.004 to 0.078"
Max Cutting Pressure: 300 Tons ; 66,000 Lb
Max Speed: 7500 Sheets/hr
Max Foil Stamping Speed 4500 Sheets/hr

12 Heating Zones

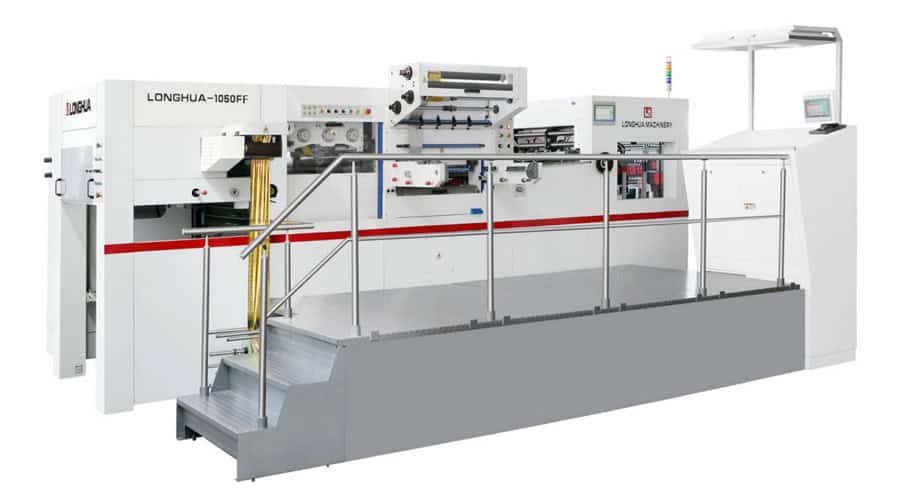

LH-1050FF Automatic Holographic Positioning Foil Stamping Die Cutting Machine
LH-1050FF, is equipped with 3V+2H independent foil feeding system, which not only ensure the stable and accurate delivery of aluminum foil at high speed, but also control the foil feeding error within 1mm, greatly save the foil. Japan YASKAWA servo system, coupled with Japan SUNX cursor detection system, improve the hot stamping precision greatly. 12 independent temperature zones control the heating system accurately, and keep the heating process stable.

Max Paper Size : 1050x750mm ; 41.33x29.5"
Cardboard: 60 to 2000 g/m2 ; 205 to 6800 Lb.in2
Corrugated Board up to 4mm ; 0.157" ; (5/32")
Plastic : 0.1 to 2mm ; 0.004 to 0.078"
Max Cutting Pressure: 300 Tons ; 66,000 Lb
Max Speed: 7500 Sheets/hr
Max Foil Stamping Speed 4500 Sheets/hr

12 Heating Zones

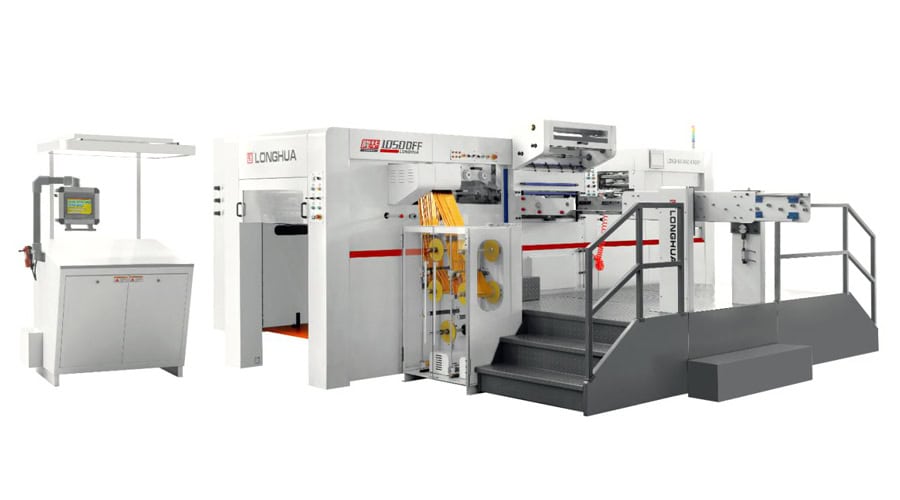

LH-1050DFF Automatic Embossing Holographic Positioning Foil Stamping Die Cutting Machine
LH-1050DFF, adds holographic positioning function on the basis of automatic embossing foil stamping die cutting machine. It is the prefect combination of embossing and foil stamping. Under 580 tons high pressure, the foil stamping process has achieved a qualitative leap, no matter in the scope, flatness and delicacy. With the effect of embossing, it makes the packaging more magnificent.

Max Paper Size : 1050x750mm ; 41.33x29.5"
Cardboard: 60 to 2000 g/m2 ; 205 to 6800 Lb.in2
Corrugated Board up to 4mm ; 0.157" ; (5/32")
Plastic : 0.1 to 2mm ; 0.004 to 0.078"
Max Cutting Pressure: 580 Tons ; 1,250,000 Lb
Max Speed: 7500 Sheets/hr
Max Foil Stamping Speed 4500 Sheets/hr

12 Heating Zones

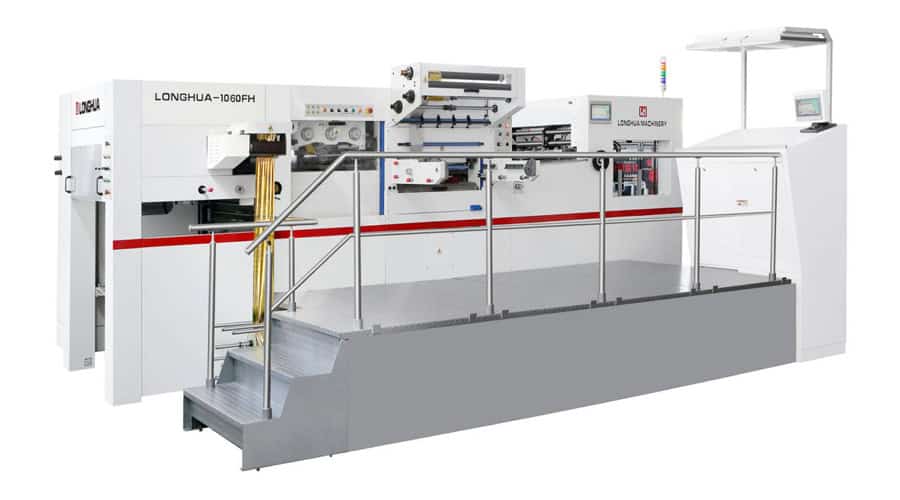

LH-1060FH Automatic Foil Stamping Die Cutting Machine
LH-1060FH, is equipped with 3V+2H independent foil feeding system, which not only ensure the stable and accurate delivery of aluminum foil at high speed, but also control the foil feeding error within 1mm, greatly save the foil. 12 independent temperature zones control the heating system accurately, and keep the heating process stable.

Max Paper Size : 1060x760mm ; 41.73x29.92"
Cardboard: 90 to 2000 g/m2 ; 300 to 6800 Lb.in2
Corrugated Board up to 4mm ; 0.157" ; (5/32")
Plastic : 0.1 to 2mm ; 0.004 to 0.078"
Max Cutting Pressure: 580 Tons ; 1,250,000 Lb
Max Speed: 7500 Sheets/hr
Max Foil Stamping Speed 6500 Sheets/hr

12 Heating Zones

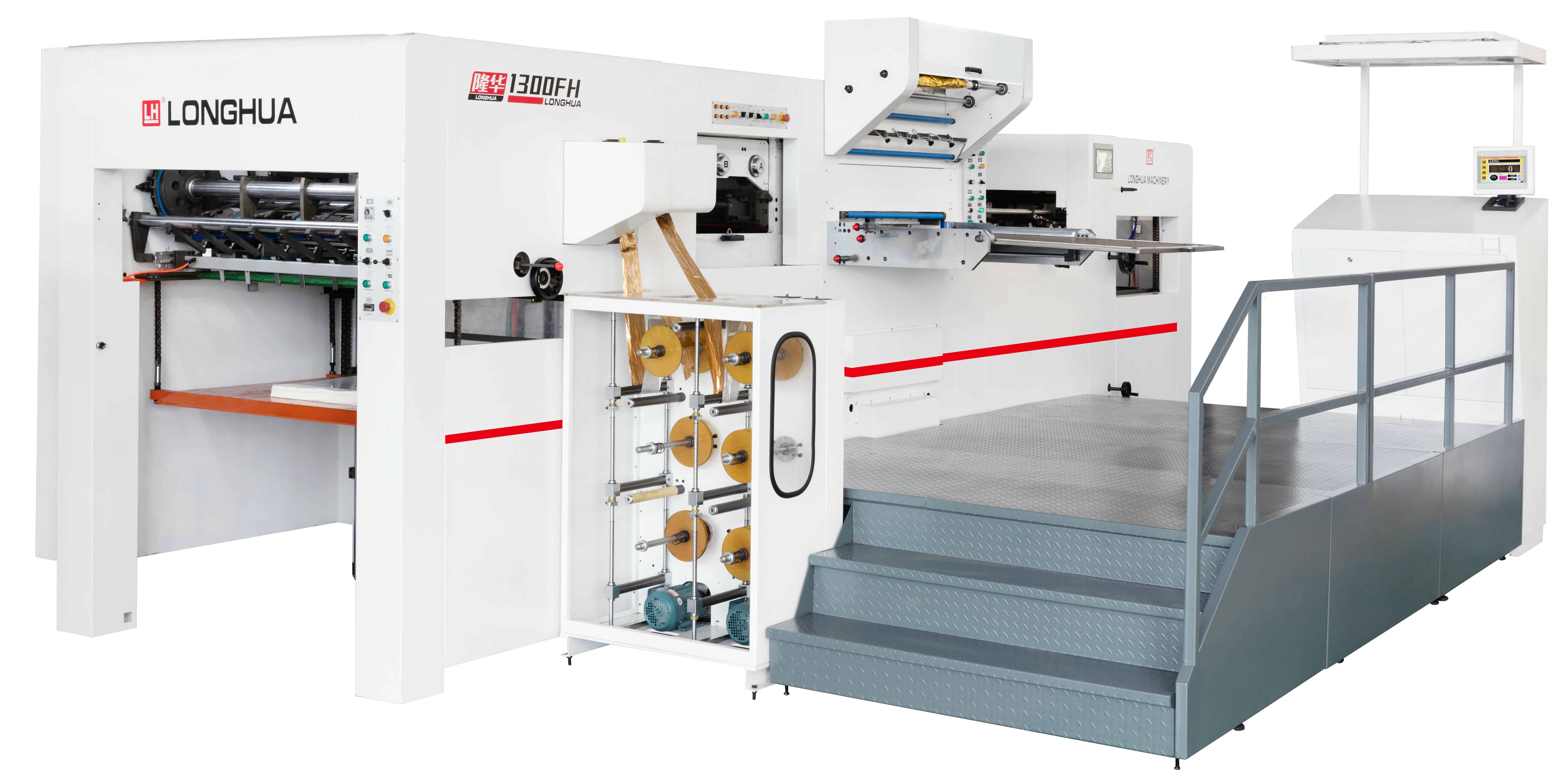

LH-1300FH Automatic Foil Stamping Die Cutting Machine
LH-1300FH, is equipped with 3V+2H independent foil feeding system, which not only ensure the stable and accurate delivery of aluminum foil at high speed, but also control the foil feeding error within 1mm, greatly save the foil. Japan YASKAWA servo system, coupled with Japan SUNX cursor detection system, improve the hot stamping precision greatly. 12 independent temperature zones control the heating system accurately, and keep the heating process stable.

Max Paper Size : 1300x960mm ; 51x37.8"
Cardboard: 120 to 2000 g/m2 ; 410 to 6800 Lb.in2
Corrugated Board up to 8mm ; 0.315" ; (5/16")
Max Cutting Pressure: 300 Tons ; 660,000 Lb
Max Speed: 5000 Sheets/hr
Max Foil Stamping Speed 4500 Sheets/hr

24 Heating Zones
