LONGHUA Embossing Machines

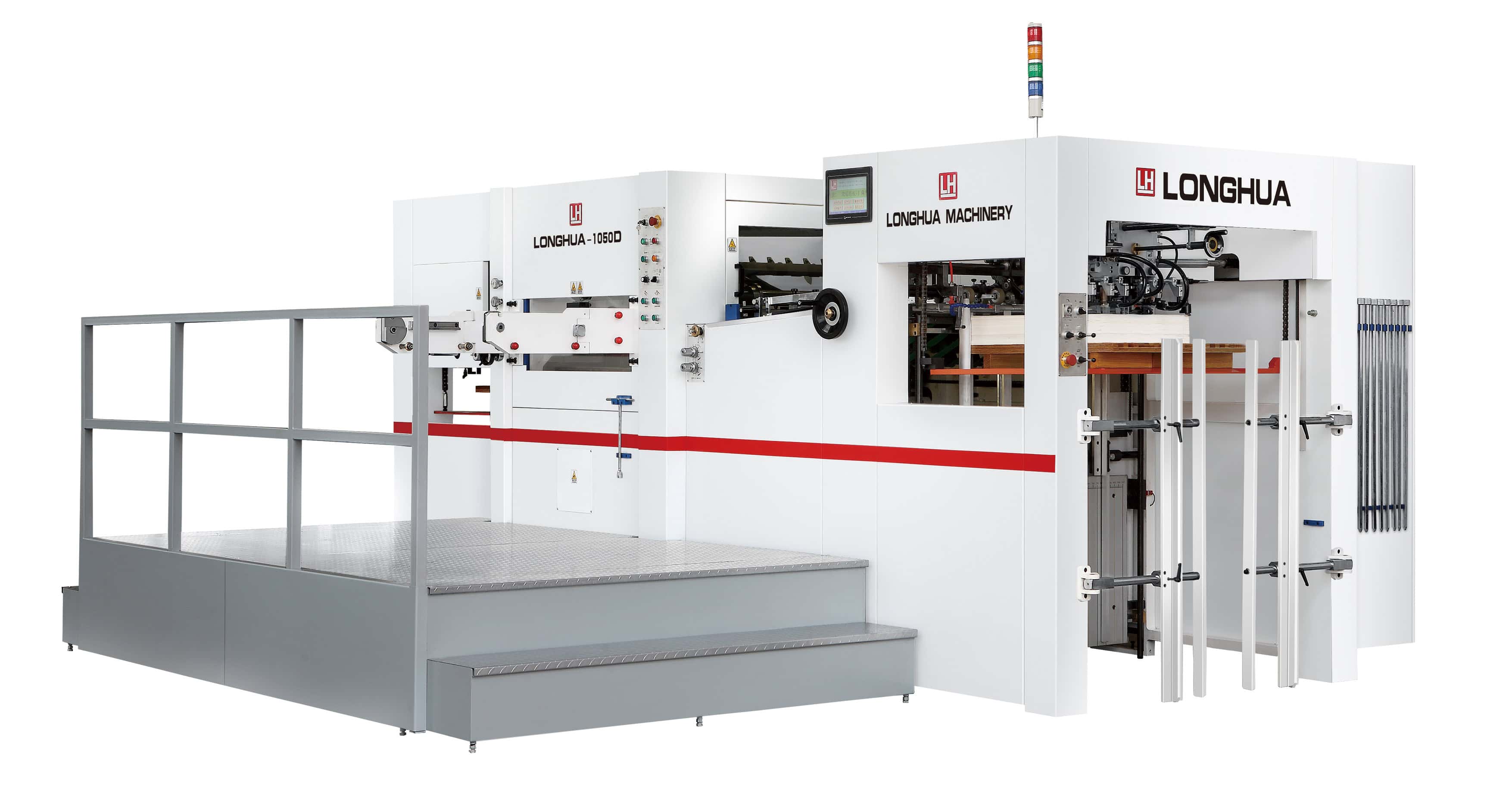

LH-1050D Automatic Embossing Die Cutting Machine
LH-1050D, automatic embossing die cutting machine ,which has up to 580 tons of pressure, coupled with 12 independent heating temperature zones, makes the processes of heat embossing, heat male and female embossing and heat indentation to be done easily, which is the prefect combination of temperature and pressure. The maximum thickness of 16 cm machine wall and other reinforcement parts of the machine , makes the process of embossing stable matchless, which keep the machine precision in a high level and also ensure the safety of the operator.


Max Paper Size : 1050x750mm ; 41.33x29.5"
Cardboard: 60 to 2000 g/m2 ; 205 to 6800 Lb.in2
Corrugated Board up to 4mm ; 0.157" ; (5/32")
Plastic : 0.1 to 2mm ; 0.004 to 0.078"
Max Cutting Pressure: 580 Tons ; 1,250,000 Lb
Max Speed: 7500 Sheets/hr

12 Heating Zones

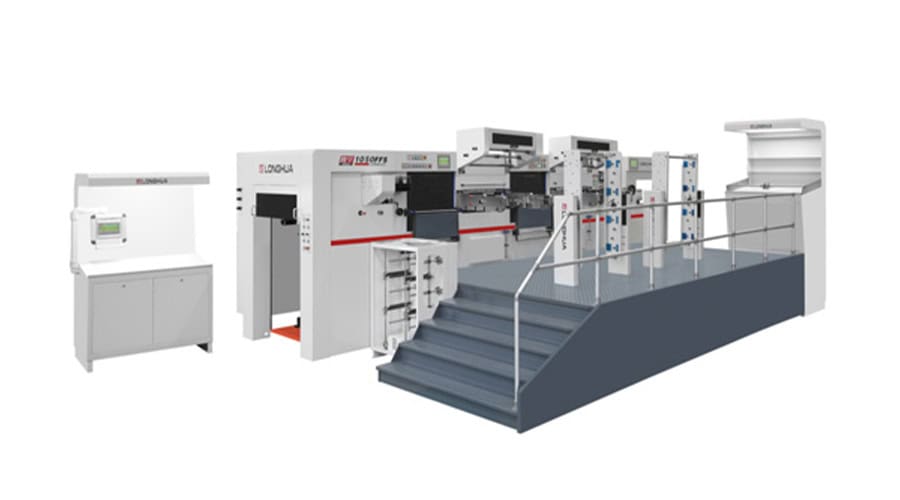

LH-1050DS Automatic heated platen stripping die cutting machine
LH-1050DS, adds stripping function on the basis of LONGHUA automatic embossing machine. It realizes one time paper feeding, die cutting/embossing , stripping, delivery. Up to 580 tons of pressure, coupled with 12 independent heating temperature zones, makes the processes of heat embossing, heat male and female embossing and heat indentation to be done easily, which is the prefect combination of temperature and pressure. The maximum thickness of 16 cm machine wall and other reinforcement parts of the machine , makes the process of embossing stable matchless, which keep the machine precision in a high level and also ensure the safety of the operator.

Max Paper Size : 1050x750mm ; 41.33x29.5"
Cardboard: 60 to 2000 g/m2 ; 205 to 6800 Lb.in2
Corrugated Board up to 4mm ; 0.157" ; (5/32")
Plastic : 0.1 to 2mm ; 0.004 to 0.078"
Max Cutting Pressure: 580 Tons ; 1,250,000 Lb
Max Speed: 7500 Sheets/hr

12 Heating Zones
