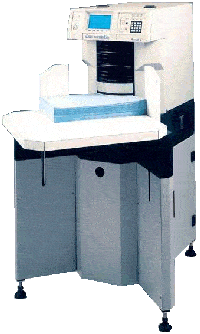

VICOUNT 2 RANGE: single head counting machines
A new modular range of high speed sheet or note counters, microprocessor controlled
with optional programmable batch tabbing with "memory store" for regularly repeated jobs,
modern multi-lingual graphical user interface (GUI) display, maximum count speed of 2500
sheets per minute, a self-calibrating vacuum system and RS232 and printer ports
for outputting count data to a PC or dot-matrix job ticket printer.
Count speed variable to 2500 sheets per minute, substance range 25 - 240 gsm,
tabbing selection 2 - 9999 and maximum pile capacity 230 mm.
The countable minimum sheet size on the standard models is 60 x 110 mm.
A special coupon attachment is available for small label/coupon applications making
it possible to count rectangular sizes to a minimum 75 x 15 mm in piles of 500 pieces.
A3.BT version - Benchtop, paper sizes to A3
A3.FS version - Floor standing, paper sizes to A3
A2.FS version - Floor standing, paper sizes to 650 x 650 mm
A1.FS version - Floor standing, paper sizes to 900 x 900 mm
B1.FS version - Floor standing, paper sizes to 720 x 1020 mm
The A2.FS and A1.FS versions are available with optional airtables

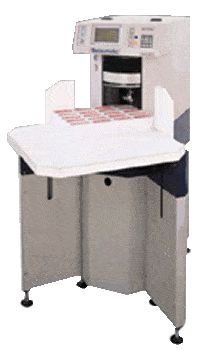

VICOUNT DISC: New generation single head counting machine
The NEW Vicount Disc is based on the highly successful Vicount 2 machine,
with the advanced benefits of Disc Technology.
Fully microprocessor controlled, optional programmable batch tabbing with 'memory store' for regularly repeated jobs, advanced multi-lingual graphical user interface (GUI), maximum count speed of 5000 sheets per minute, substance range of 60-120gsm, tabbing selection 5-9999 and maximum pile capacity of 152mm (6"). The minimum countable sheet size on the standard model is 60 x 110 mm. A special coupon attachment is available for small applications making it possible to count rectangular sizes to a minimum of 19 x 43mm in piles of 25 - 50mm.
The Vicount Disc is an ultra-fast 100% accurate counting machine with batch tabbing capabilities.
Exact counting which eliminates costly re-runs.
Upward counting direction, allowing easy removal of excess remnants, and thus reducing the health and safety issues associated with heavy lifting.
Removes the high cost of hand counting and the risk of repetitive strain injury (RSI).
Eliminates inconsistencies in batched quantities and thus reduces customer complaints.
Security Clamp feature.
Available Table sizes:
B1.FS version - Floor standing, paper sizes to 720 x 1020 mm.
A3.FS version - Floor standing, paper sizes to 400 x 600 mm.
A2.FS version - Floor standing, paper sizes to 650 x 650 mm.
A1.FS version - Floor standing, paper sizes to 900 x 900 mm .
The B1.FS, A2.FS and A1.FS versions are available with optional airtables.
TORNADO: the high speed counting machine for finished banknotes
VICOUNT E: Single head counting machine

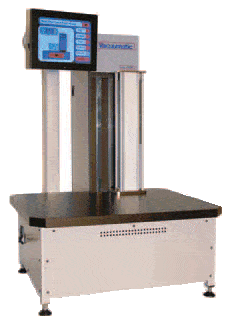

Count-S 450B : Optical Counter
The Count-S is a non-contact optical counter, which utilises the latest generation of optical and processing technology to provide vastly improved performance when compared to earlier optical technology. The Count-S produces a high resolution 2 dimensional image, which is then analysed using highly innovative image processing techniques to produce fast, accurate results.
A wide range of materials from thicknesses of 0.1mm and upwards can be counted with 100% accuracy, subject to material presentation and quality.
The Count-S is equipped with a high resolution colour touchscreen, which utilises an Icon (graphical image) based display. This provides an easy to understand user interface, which is language independent.
In order to minimise operator input a selfteach facility has been incorporated. During self teach the Count-S scans a known quantity of the material to be counted and automatically adjusts exposure, lighting and numerous analysis parameters to their optimum values. These values are then stored and can be quickly recalled whenever the material is to be counted again.
